308 Agricultural Building and Equipment Plans

Miscellaneous Plans

• Irrigation pipe trailer for 30' or 40' aluminum pipe.
• Sprinkler pipe trailer. 2 wheels.
• Cattle shed and auction barn. 46' x 136'. Clear span auction.
• Self aligning dock bumper.
• Rodeo arena. 140' x 248'.
• 3-point hitch boom. Category i. Welded i-beam materials.
• Cattle racks for pick-up trucks. Heavy or light duty. Wood.
• Storm cellar. 8' x 16' or 5' x 10'. Conc. & masonry construction.
• Pasture drag. Constructed from used tires.
• Turtle traps. Funnel mouthed or box type.
• Beehive and frame.
• Solar beeswax extractor.
• Bulletin display & storage.
• Elevated sawdust bin.
• Dog houses. Includes 3 types of houses.
• Metal grate covers for drainage gutters in cattle facilities.
• Portable trimming chute for cattle.
• Low cost beehive.
• Honeycomb uncapping tank & super dumping board.
• Brood hive (five & six deep).
• Honey extractor.
• Purple martin birdhouse.
• Four wheel lawn & garden wagon. (running gear only).
• Lightning protection system for farm buildings.
• Above ground storm shelter. 9' x 14' concrete block const.
• 12" log lifter.
• Show animal wash rack. 16' x 20' concrete.

House plans

• Energy efficient house site & landscape plan.

Recreation plans

• Five room log cabin. 32'-6" x 42'.
• Three room log cabin. 28' x 30'.
• Playground layouts. Dimensions for various courts.
• Boat landing. Roofed.
• Adirondack-type shelter. 13' x 15'. Open front.
• One bedroom pole frame cabin. 24' x 24'.
• One bedroom "a" frame cabin. 24' x 24'.
• Cabin. 16' x 20' wood frame.
• Dormitory loft cabin. 22' x 24' frame.
• Covered barbecue pit. 13' x 19' pole frame.
• Covered barbecue pit. 13' x 25' pole frame & insect screen.
• Backyard barbecue pit. 4' x 6'. Brick construction.
• Camp stoves. Masonry for outdoor cooking.
• Outdoor fireplaces.
• Playground equipment. Wood frame slide, swing, sand box, etc.
• Wood deck. 14' x 16' attached to house.
• Wood deck railing & stair detail.
• Picnic table.

Fairground and Community Plans

• Pavilion. 24' x 36' including 12' x 12' kitchen. Pole construction.
• Two story community building. Kitchen, restrooms, & storage.
• Picnic shelter with fireplace. 12' x 20' pole frame.

Beef Plans

• Moveable cattle loading chute 12' long on wheels.
• Movable calf creep feeder. 2 pens with center feed.
• Movable calf creep feeder in a 24' x 24' pen. 20 calves.
• Calf creep feeder. 9' x 10' wood frame. 50 bushels.
• Cattle holding chute and head gates.
• Loading chutes. Portable, stationary, and with steps.
• Variable height loading chute for cattle. Cleated walk.
• Cutting gate, tower and chute. Pipe construction.
• Loading ramp and 6-way sorting trap. Wood construction.
• Tilting calf table. Wood construction.
• Tilting calf table. Pipe frame.
• Beef cattle corral. 50 head.
• Corral with curved chute. Four pens plus working pen.
• Walk-thru headgate. Wood construction.
• Covered breeding chute for beef cattle.
• Goose neck trailer for cattle. Wood floor. Pipe sides.
• 3 tier loading chute. Wood construction.
• Corral with working facilities. Pipe & metal construction.
• Pasture creep gate.
• Movable headgate. Metal construction.
• Counter-sloped beef feeding pens. Each pen is 36' x 48'.
• Holding chute and corral construction details.
• Head gate. Wood construction.
• Simple corrals.
• Tennessee corral. (revision of plan 7241-7, basic unit)
• Tobacco barn/cattle handling facility.
• Basic working chute for cattle.
• Cattle barn with partial hay loft. 50' x 70'.

Dairy Plans

• Two portable calf pens. Wood framed or steel framed.
• Dairy housing equipment. Feed bunk, manure lip, ridge vent.
• Crowding gate for dairy cattle. Pipe construction.
• Maternity barn for dairy cows. 34' x 72'. 10 large stalls.
• Elevated wood calf stalls. Pail, hay & grain feeding.
• Elevated wood calf stalls. Pail feeding only.
• Cold calf housing. Individual 4' x 18' partially open pens.
• Calf hutch with movable paddock. 3'-9" x 7'-4".
• High density dairy freestall housing/feeding facility. 78 stalls.
• Twelve stall trigon milking parlor.
• Milking parlor grounding system.
• Double-six herringbone milking parlor.
• Double-three herringbone milking parlor.
• Double-four herringbone milking parlor.
• 60-cow dairy facility. (hay & fence line feeding)
• 220-cow dairy housing facility with drive-thru feeding.
• Covered composting shed for dairy wastes. 12' x 48'.
• 200-cow dairy housing and drive-thru feeding facility.
• 300-cow freestall & feeding facility. 100' x 336'.
• 84-cow dairy housing & center drive-thru feeding facility.
• 108-cow freestall barn. 52' x 120'.
• Enclosed calf barn with 80 elevated stalls. 22' x 96' with ventilation details.
• 120-cow dairy housing and feeding facility. 96' x 156'.

Horse Plans

• Riding horse barn. 2 stalls, loft, feed and tack rooms.
• Two horse trailer with tandem axle.
• Saddle horse barn. 12' x 60' pole frame. 4 stalls.
• Horse barn. 24' x 50' wood frame. 8 stalls.
• Horse barn. 36' x 100' frame. 17 stalls.
• Horse equipment. Coop jumps. Gate.
• Horse show rings.
• 1-1/2 story horse barn. Wood construction. 3 stalls.
• Portable horse stall. 10' x 12' plywood siding.
• Horse barn. 2 stalls. 20' x 32' plywood. Covered walkway.
• Horse barn. 48' x 92' with indoor exercise area.
• Horse barn and arena. 60' x 140' clear span.
• Horse barn. 16' x 24'. Gambrel roof.
• Horse barn. 24' x 36' pole construction. 3 stalls.
• Horse barn. 26' x 48'. Gambrel roof.
• Horse restraining stall. 35" x 75" pipe frame.

Poultry Plans

• Poultry house. 7' x 11'. 25 to 40 layers.
• Poultry house. 11' x 15'. 50 to 80 layers.
• Poultry house for 40-50 birds. Feed bin and nests are shown.
• Poultry and pigeon houses. 8' x 8'.
• Poultry house. 10' x 12'.
• Broiler house with wood truss. 40' x 400'.
• Broiler house with metal truss. 40' x 400'.
• Dead poultry composting facility. 30' x 72'. (120,000 birds)
• Concrete composting facility for poultry mortalities.

Goat, Sheep and Rabbit Plans

• Hay and grain feeder. 10 sheep. Wood frame. (replaces 5807)
• Sheep feeders. 3' x 6' wood construction.
• Portable self-feeder for sheep. Wood const. (replaces 5808)
• Mineral feeder for sheep. Hinged roof. 3' x 5'.
• Sheep and lambing sheds. 20' x 32' wood frame.
• Tilting squeeze for sheep. Pipe construction.
• Sheep chair. Metal frame. 2 seats.
• Three-way cutting gates for sheep. Wood construction.
• Milking barn and milkhouse for 10 goats.
• Milking barn and milkhouse for 10 goats.
• Rabbit hutch. Open sided pole construction.
• Buck goat yard. Shelter and feeders.
• Portable lambing unit.
• Sheep shearing table. Wood construction.
• Fence line sheep feeder.
• Two-row caged rabbit house. Open pole type construction.
• Six-row caged rabbit shed. 30' x 120'.
• Metal goat milking stand.
• Goat milking parlor & cheese plant. 4 herringbone stalls.

Roof framing and truss plans

• Braced rafter (gambrel roof) design details. 20' to 34' span.
• Braced rafter (gambrel roof) design details. 36' to 50' span.

Tobacco Plans

• Tobacco barn. 32' x 60' four tier pole const. (tobacco exp.Station)
• Two wheel pipe frame tobacco trailer. (kentucky)
• 24' wide two tier side loading tobacco barn.

Fence and cattle guard plans

• Automatic gate.
• Farm gates. 5 gates, stile & fence passes.
• Cattle guards. Wood frame and concrete.
• Telescoping type gate. Pipe construction.
• Cable fencing. Concrete posts.
• Types of wood fencing for the home and garden.
• Variable clearance gate. Pipe construction.

Swine and pig plans

• Swine breeding crate. Wood construction.
• Self feeder for hogs. Wood frame. Metal drum for feed.
• 12' x 16' shade for hogs. Portable or permanent.

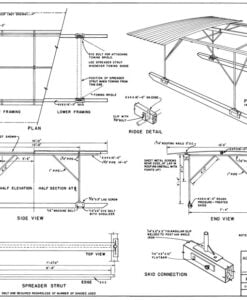

• Portable shade for hogs. 12' x 12' open shed. Metal roofing.
• Portable shade for hogs. 12' x 16' wood and pipe frame.
• Movable 14' x 16' elevated swine feeding unit. Slotted floor.
• Boar pens. 6' x 17' open front pens.
• Circular crowding pen for swine.
• Knock down steel frame farrowing crate.
• Tarp frame hog shade. 16' x 16'. Pipe frame.
• Pig castrating table.
• Portable farrowing and nursery unit. 23' x 20'. 8 sows.
• Portable backyard pigpen. 4' x 9'.
• Portable sow feeding stalls. Wood construction.
• 240-head swine finishing floor. Partial slats, curtain sides.
• 240-head swine finishing floor with open gutter flush.
• Free-swinging flush bucket. 200 gallons capacity.
• Swine nursery with partially slotted floor. Curtain wall.
• Modified "a-frame" portable farrowing unit. 6' x 8' plywood.
• Syphon flush tank. Various capacities given.
• Sprinkler cooling system for swine.
• 24-sow enclosed flush farrowing house and cage nursery.
• 72-sow open gutter flush gestation house. "freestall" feed.
• 192-pig enclosed pig nursery with elevated 4' x 8' cages.
• 12-sow single row enclosed farrowing house & cage nursery.
• Ventilation plan for an enclosed pig nursery. (192-240 pigs)
• Ventilation plan for curtain wall 24-sow farrowing house.
• Swine site plan. (96 sows farrow-to-finish)
• Ventilation plan for an enclosed 12-sow farrowing house.
• Swine grower unit with open gutter flush.
• Boar housing/breeding facility. Open gutter flush.
• Portable elevated swine nursery. 16 pigs.
• 24-sow & 12-cage multiple room farrowing house/cage nursery.
• 24-sow & 12-cage multiple room farrowing house/cage nursery.
• Ventilation plan for an enclosed swine building.
• 240-head swine finishing floor with pit re-charge. 24' x 96'.

Greenhouse plans

• Plastic covered greenhouse/cold frame. 8' x 18' wood frame.
• Portable plastic greenhouse. 9' x 12' arched roof.
• Hotbed and propagating frame. Plastic cover. 6' x 6'.
• Greenhouse framing. 23' x 48' rigid wood frame.
• Lath house. 22' x 48'.
• Mini hot bed and propagating frame. Arched roof. 42" x 5'-0".
• Greenhouse benches. 6 types. Wire and wood.
• Home greenhouse. 10' x 12'. Plastic or fiberglass cover.
• Plastic covered greenhouse. 28' x 96' wood or pipe framing.
• Hot bed. 3' x 6' or 6' x 6'. Electric cable heat.
• Arched conduit greenhouse. 20' x 80'. (conduit bender shown)
• Pipe frame greenhouse. 28' x 96' plastic covered. Evap cool.
• Plastic greenhouse. 12' x 16' pole frame.
• Plant nursery wagon with four wheel steering.
• Gothic rafter greenhouse. 21' x 40'. Plastic covering.
• Plastic covered greenhouse. 21' x 40'. Scissors trusses.
• Plastic covered greenhouse. 20' x 48'. Pipe(conduit) frame.
• Hobby greenhouse. 12' x 20'. Plastic pipe arch construction.

Fruit and vegetable plans

• Roadside stand. 24'x 28' frame.
• Large roadside stand. 17'x 24' frame.
• Smoke house. 7' x 8' wood or concrete block. (replaces 5029)
• Two display stands for produce. Plywood construction.
• Permanent roadside stand. 8' x 16'.
• Roadside market with refrigerated room.
• Plywood pallet vegetable box. 47" x 47" x 24" deep.
• Plywood pallet vegetable box. 47" x 40" x 24" deep.
• Plywood pallet vegetable box. 47" x 47" x 46" deep.
• Fruit storage building. 24' x 52'. Cold storage room.
• Fruit dryer. Electric forced air heat.
• Fruit & vegetable storage for home basement. 10' x 10'.
• Solar fruit dryer.
• Cassette fruit dryer. (uses portable electric heater).
• Apple storage and packing facility. 40' x 170'.
• Walk-in refrigerator for farm market. 8' x 12'.
• Insulated door details for cold storage.
• Two temperature walk-in refrigerator. (replaces plan 7102)
• Wooden pallet vegetable box. 38" x 47" x 32" deep.
• 60' x 250' farmer's market with 36 sales stalls.

Grain handling and feeding plans

• Two level salt and mineral box for sheep and cattle.
• 4-wheel moveable self feeder for cattle. 6' x 9'.
• Pole corn crib. Wire mesh walls. 6'-6" x 45'.
• Mineral feeder for cattle. Roofed. Permanent.
• 2-wheel movable self feeder for cattle.
• Grain/feed handling center. Pole type construction.
• 100,000-bushel grain handling and storage center.
• Grain handling and storage center. Expands to 108,000 bu.
• Feed cart. 26" x 4' or 26" x 6'.
• Circular grain bin layouts.
• Circular grain bin foundations. (up to 22' diameter)
• Bulk storage shed for commodity feeds. 36' x 36' pole construct.

Forage storage and feeding plans

• Moveable hay racks for cattle. 2 kinds given. 6' x 14'.
• Self-feeding hay wagon. Wood construction.
• Cattle feeding rack for hay and silage.
• Wagon rack for silage feeding. Wood construction.
• Silage feed bunks. 4 types. Concrete.
• Wagon rack for tossed bales.
• Horizontal silo. Tilt-up concrete above or below grade.
• Hay feeders for round bales.
• Covered feeder for large round bales.
• Portable feeder for big bales.
• Hay barn for automatic bale stacker-wagons. 46' x 96'. Pole.
• Hay spike for front end loader.
• Concrete trench silo. Tilt-up construction.
• Hay storage for large round bales. 48' x 96' pole construct.
• Bunker silo. Above ground tilt-up concrete. 8' to 20' walls.
• Big bale hay storage. 40' x 96' clear span. Side loading.
• Fence line hay feeder for big round bales.
• Hay feeding rack for big round bales.
• 28' x 72' hay storage for big round bales. Clear span. End loading.
• 40' x 96' hay storage for big round bales. Clear span. End loading. (replaces plan #t4099)
• 40' x 96' hay storage barn with metal trusses. Clear span.

Machinery and supply storage plans

• Transportable bulk storage fertilizer bin.
• Fertilizer storage. 40' rigid frame. Concrete floor.
• Machinery stor. & shop. 42' x 98' pole frame. (not clear span)
• Machinery storage. 40' x 102' pole frame. Raised center bay.
• Fertilizer bulk storage shed. 16' x 36'. 72 ton capacity.
• Machinery shed. 25' x 72' pole frame. Raised center bay.
• Machinery storage & shop. 32' x 129' clear span pole const.
• Pesticide storage building. 12'-8" x 20' masonry construct.
• Shed roof machine storage. 24' x 96' pole construction.
• 24' x 72' machinery storage (tool shed).
• 30' x 52' machinery storage (tool shed). Post frame.
• Woodworking shop layout. 32' x 40'.
• Farm machinery shop. 40' x 56'

Water supply and waste disposal plans

• Large diameter valves for gravity flow manure handling.
• Water-weighted flush valve opener.
• Pit type privy. (replaces 6054)
• Manure loading platform.
• Covered dry stack manure storage. Press. Treat. Plank sides.
• Covered "dry stack" waste storage. 42' x 96' with conc. Sides.
• Log compost pit for lawn and garden wastes.
• Broiler litter storage for 200 tons of litter. 40' x 48'.
• Poultry litter storage for 200 tons of litter. 36' x 70'. Shed roof.

General barn and utility shed plans

• Feeding barn. 30' x 56' frame with gambrel roof.
• Two story braced rafter barn framing. 38' wide.
• Pole barn. 39' x 60' or 52' x 60'. Ridge between poles.
• Pole barn. 39' x 60' or 52' x 60'. Ridge centered on pole.
• Pole barn. 39' x 60' or 52' x 60'. 26' roof truss plus sheds.
• Multi-purpose pole barn. 30' x 60' clear span.
• Walls, doors, and windows for pole type buildings.
• Two car garage. 24' x 24' frame construction.
• Two car garage. 24' x 24' post construction.
• Storage sheds. 12' x 16'. Concrete floor. 4 types.
• "little red barn" storage building. 10' x 12' concrete floor.
• Movable shed. 12' x 12'. Door and swing-up side opening.
• Utility shed. 8' x 8' or 8' x 16'. Sliding door. Shed roof.
• General barn. 18' x 30' wood frame construction.
• General barn. 24' x 30' wood frame construction.
• Lawn tool storage. Plywood shelving.
• Outdoor garden tool storage building. 6' x 8' plywood.
• Contemporary carport & shop with storage loft. 20' x 34'.
• Pavilion with storage. 24' x 36' pole construction.
• Driveway planning guides for one & two car garages.
• General purpose pole barn. 30' clear span plus 14' side shed.
• 40' x 44' general barn. (20' raised center plus two 12' side sheds)
• 36' x 48' general barn. (12' raised center plus two 12' side sheds)
