| Difficulty | Intermediate – Advanced |
|---|---|
| Included | Full-size construction drawings |
| Format | PDF (instant download) |
| File Size | 6.8 MB |

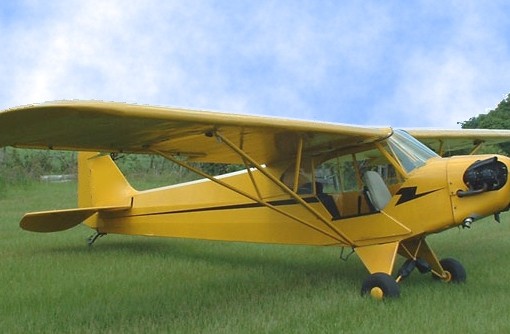

Piper J-3 Cub Replica Plans – Full Size Aircraft
Piper J-3 Cub Replica plans for full size aircraft. The J-3 Cub is one of the most iconic aircraft ever built – over 20,000 were produced between 1938 and 1947. Welded steel tube fuselage with fabric covering, wood-spar wings. A classic that flies as beautifully today as it did 80 years ago.
Tube and Fabric Construction – Welding Required
The J-3 uses welded steel tube fuselage construction. Builders should have welding experience or be prepared to learn. Many EAA chapters have experienced Cub builders who can provide guidance.
PDF file. 6.8mb. Instant download after purchase.
