1903 Wright Flyer Plan Sheets from Wright-Brothers.org

The aircraft that started it all

On December 17, 1903, the Wright Brothers achieved the first sustained, controlled, powered flight of a heavier-than-air aircraft. Their original Wright Flyer flew four times that day, covering up to 852 feet. The design is universally public domain and arguably the most historically significant aircraft ever built.

What’s included

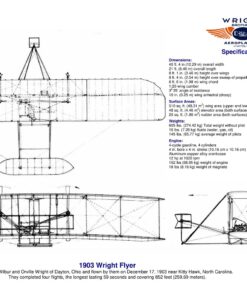

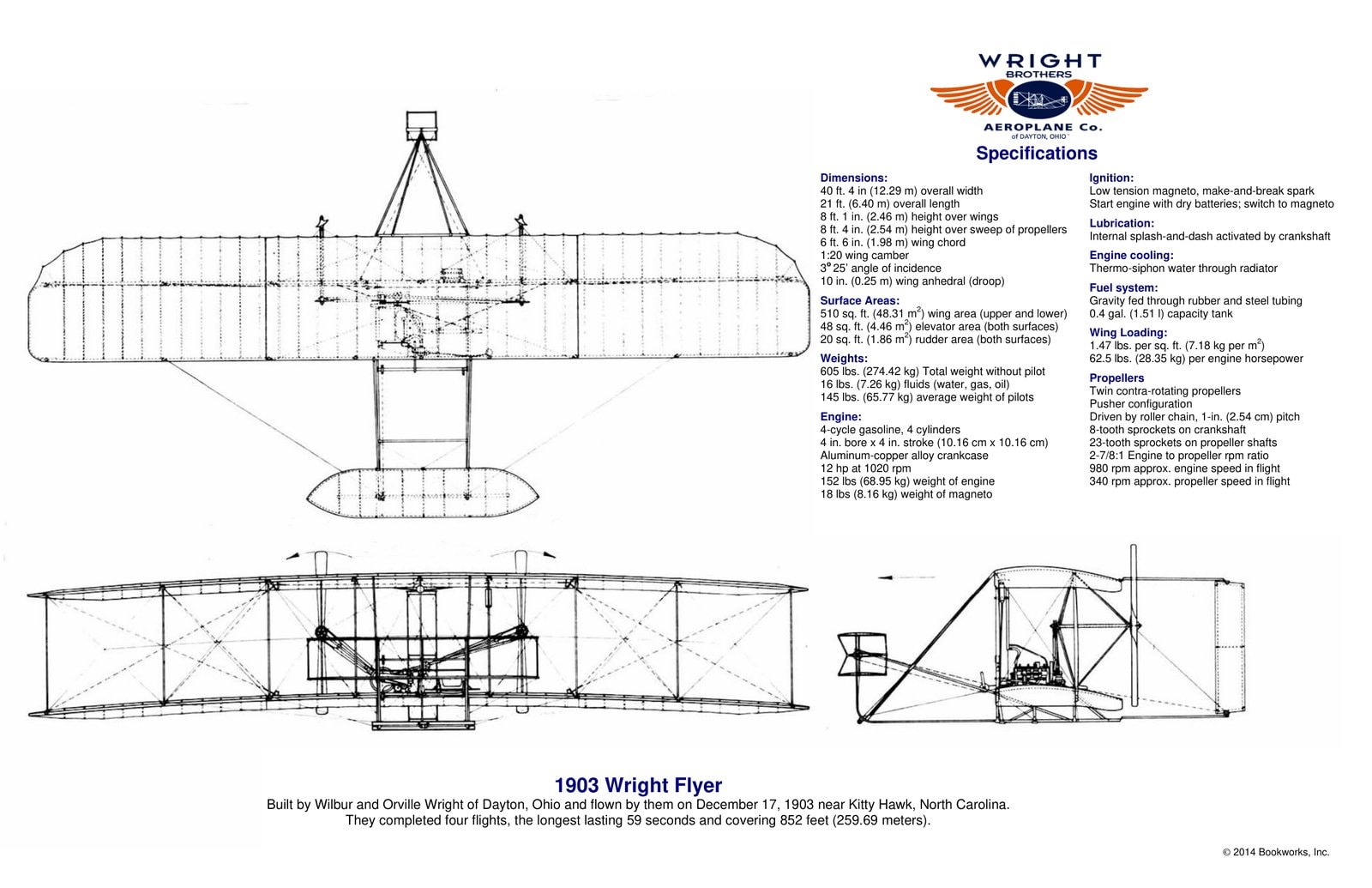

• Isometric Plan Sheet (11×17) — comprehensive specifications view showing the aircraft in three-dimensional projection with dimensional callouts
• Perspective Plan Sheet (11×17) — depth-correct three-quarter perspective with key structural details
• Parts Diagram (11×17) — exploded view identifying every major component, useful for replica construction or museum interpretation

Design specifications

• Wingspan: 40 ft 4 in (12.3 m)
• Length: 21 ft 1 in (6.4 m)
• Empty weight: 605 lb (274 kg)
• Powerplant: Custom Wright 4-cylinder inline, 12 hp, water-cooled
• Construction: Spruce and ash frame, muslin-covered wings, twin pusher propellers driven by bicycle chain
• First flight: 17 December 1903, Kill Devil Hills, NC

Who this is for

This plan package is suited to museum-grade replica builders, scale model designers using printed reference, aviation history educators, and authentic-detail aircraft enthusiasts. The Wright Brothers’ original design used pre-industrial materials and bicycle-shop techniques — a faithful build is a study in early-twentieth-century engineering, not a flight project for the modern amateur.

About these documents

These plan sheets were published by the Wright Brothers Aeroplane Co. (wright-brothers.org) as public-domain reference materials. The 1903 design is past all conceivable copyright duration. Plansforu.com supplies these scans as builder reference and educational materials. The original aircraft hangs in the Smithsonian National Air and Space Museum.
